Field test: PV Modules

A real world comparison between Mono, Poly, PERC and Dual PV Modules.

Total solar yield: --
S
Total solar yield: --
S
Total solar yield: --
S
Total solar yield: --
S
Total solar yield: --
E
Total solar yield: --
W
Romania
--
--
Installation date: 09-03-2020
--
--
--
--
--
--
--
Irradiance

* This is a field test and the results are specific for this installation on this location please research which is the best solution for your own situation as the results can be different based on environmental influences.

Total solar yield as of 27/03/2023 when the results were reset:
Mono: 9158 kWh
Split-cell: 9511 kWh
Poly: 9113 kWh
Perc: 9471 kWh
Perc-east: 1970 kWh
Perc-west: 1730 kWh

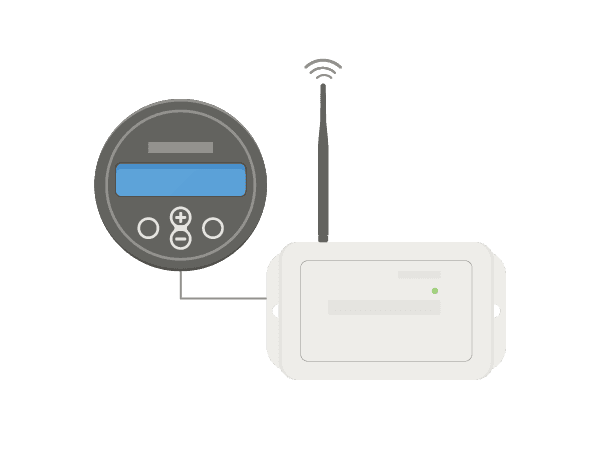

VE.Direct LoRaWAN - module

Using the VE.Direct to LoRaWAN module you can connect your BMV, MPPT or Inverter to the Victron Remote Management portal. View information such as battery status or solar power wherever you are on your desktop or mobile phone.

Remote Monitoring and Control

You can check the status of your connected products on our free remote monitoring website: the VRM Online Portal. To get an impression of the VRM Online Portal, visit vrm.victronenergy.com, and use the ‘Try Our Demo’ button. The portal is free of charge.

Long Range Wide Area Network

LoRaWAN is a wireless network that operates on the 868Mhz frequency. It has a long range and uses small amounts of power. The VE.Direct LoRaWAN module can send hourly data updates via this network. You do not need a subscription to make use of this network. If you do not have coverage in your region it is possible to add your own gateway.

Read more about the VE.Direct LoRaWAN module in our blog article.

Downloads & Support

Free internet connection using LoRaWAN to VRM

It's a little unfair of me to grab your attention with the 'free internet' connection and the new VE.Direct LoRaWAN module to the VRM , but it's true - no data charge. However as with everything there's always two sides to the coin - benefits to connecting products this way and some limitations. Regardless this new product might just be what you need to connect Victron products to monitor data...
